UFO LED Highbay 100W D series
Model No.: S-UHB100WD
Body material: Aluminum
Voltage: AC100-277V
LED chip: Philips Lumileds 2835
Color: 3000-6500K
Power factor: >0.95
Beam angel: 60°/90° /120°
Control type: standard on/off; Microwave sensor; DIP switch CCT & Wattage
Payment terms: T/T, Westen union
Warranty: 5 Years
- Specifications
- Features

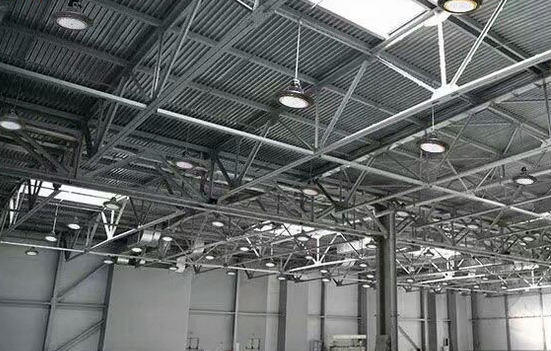

- Applications
|
Specification for UFO LED High bay D series 100W |
|
|
Model No. |
S-UHB100WD |
|
Driver |
MOSO driver |
|
LED Light Source |
Philips Lumileds 2835 LEDs |
|
LED Luminous Efficiency |
160lm/w |
|
Power Efficiency |
> 85% |
|
Lamp Rated Luminous Flux |
16000Lm±5% |
|
Color Rendering Index(CRI) |
Ra>70 or Ra >80 |
|
Color Temperature(Color Temperture) |
3000K- 6500K |
|
Beam Angle |
60° /90°/120° |
|
Light Distribution/Beam Pattern |
Round Beam |
|
Input Voltage |
AC 100-277V |
|
|
50/60Hz |
|
Power Factor(PF) |
> 0.95 |
|
Working Environment |
- 30℃ ~ -+55℃ |
|
Light Body Material |
Dia-cast Aluminum |
|
Working Lifetime |
> 50,000hrs |
|
IP Rating |
IP65 |
| Control type | standard on/off; Microwave sensor; DIP switch CCT & Wattage |
|
Net weight |
1.8kgs |
|
Gross weight |
2.1kgs |
|
Product Size |
Ø255*H162 mm |
|
Package Size |
L: 310mm W: 310mm H: 140mm |
