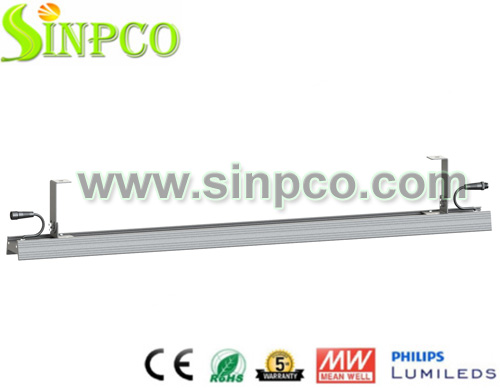

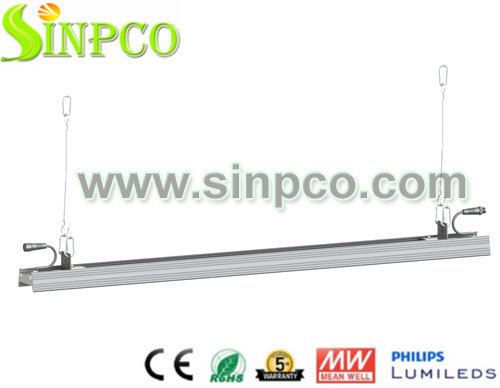

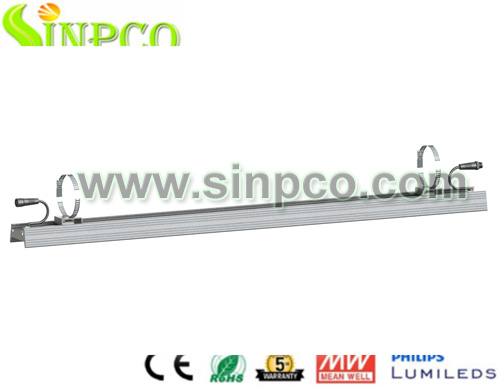

LED linear sport light for padel court
Model No.: S-SPL-17W/S-SPL-30W/S-SPL-40W
Body material: Aluminum
Voltage: AC180V-528V
IP rating: IP66
LED chip: Philips lumileds 2835
Color: 4000-6500K
Driver brand: Inventronics
Payment terms: T/T
Warranty: 5 Years
- Specifications
- Features
- Applications
|
Model |
S-SPL-17W |
S-SPL-30W |
S-SPL-40W |
|
|
Power |
17W |
30W |
40W |
|
|
Lumen |
2890 Lm |
5100 Lm |
6800 Lm |
|
|
Efficacy |
170lm/W |
|||
|
CCT |
4000K,5000K,6000K |
|||
|
CRI |
≥70Ra /≥80Ra |
|||
|
LED |
Lumileds 2835 |
|||
|
PF |
>0.95 |
|||
|
Input Voltage |
AC180-528V 50-60Hz |
|||
|
THD |
＜20%（Typical:10%） |
|||
|
Net Weight |
2.6kg |
|||
|
Sizes(mm) |
1160*85*79mm |
|||
|
Beam Angle |
P18° |
|||
|
Work Temp |
-35~55℃ |
|||
|
Lifespan |
≥50000 Hrs(LM80@35℃) |
|||
|
IP Grade |
IP66 |
|||
|
IK Grade |
IK08 |
|||
|
Product Material |
||||
|
Power Wire |
Body material |
Electronic safety grade |
||
|
Rubber cable(3*1mm²) |
Aluminum + PC |
Class I |
||
Dialux simulated illuminance:
Court Size: 20M*10M
|
Solution |
300Lux High Brightness |
500Lux High Brightness |
750Lux High Brightness |
|
Power |
850W |
1500W |
2000W |
|
Layout |
2 rows （20 meters each） 17 lights per row
2 rows （10 meters each） 8 lights per row
Total 50 lights |
2 rows （20 meters each） 17 lights per row
2 rows （10 meters each） 8 lights per row
Total 50 lights |
2 rows （20 meters each） 17 lights per row
2 rows （10 meters each） 8 lights per row
Total 50 lights |
|
Average llluminance |
300Lux |
500Lux |
750Lux |
|
Uniformity |
>0.7 |
>0.7 |
>0.7 |
